Manufacturer: Wagner

Part Number: 2309871

Part Number, FM Rated: 2344473

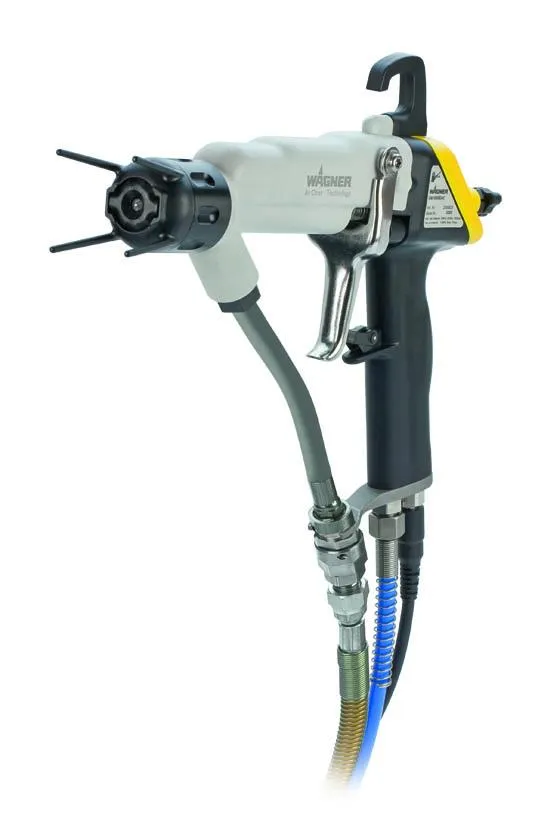

Description: Wagner GM 5000EAC spray gun Without control unit, product and air hose, electric cable, air cap, and nozzle.

FM version meets FM (Factory Mutual Underwriters) standards and requirements.

Electrostatic manual gun AirCoat for solvent-based lacquers

• Electrostatic manual gun for AirCoat applications with low-conductive solvent-based material. With integrated high-voltage cascade. Additionally required: Control unit VM500 or VM 5000
• OUTPUT VOLTAGE: 80,0 kV
• OUTPUT CURRENT: 100 µA
• MATERIAL PRESSURE: 0 – 250 bar, 0 – 3626 PSI
• MATERIAL CONNECTION: NPS 1/4“
• MATERIAL TEMPERATURE: 60 °C, 140.0 °F
• LACQUER CONDUCTIVITY: 20 – 500
• LACQUER CONDUCTIVITY LOW: R4 – 25
• AIR INLET PRESSURE: 0,0 – 0,8 MPa, 0,0 – 8,0 bar, 0 – 116 PSI
• AIR INLET CONNECTION: G 1/4“
• OPERATING TEMPERATURE: 5 – 40 °C, 41.0 – 104.0 °F
• WEIGHT: 710 G, 1.57 LB
• LENGTH: 264,0 mm, 10.4 in
• HEIGHT: 246 mm, 9.7 in
